The automotive industry has evolved significantly over the past few decades, with vehicles becoming more complex and technologically advanced. One of the most critical aspects of modern vehicle maintenance and repair is automotive diagnostics. This process involves identifying and troubleshooting issues within a vehicle’s systems using specialized tools and software.

Automotive diagnostics play a vital role in ensuring vehicle safety, performance, and longevity. From basic OBD-II scanners to advanced diagnostic software, the tools and techniques used in diagnostics have transformed how mechanics and technicians approach vehicle repairs.

In this comprehensive guide, we will explore:

1. The Evolution of Automotive Diagnostics

2. How Automotive Diagnostics Work

3. Common Diagnostic Tools and Equipment

4. Types of Vehicle Diagnostics (OBD-I vs. OBD-II)

5. Key Diagnostic Trouble Codes (DTCs) and Their Meanings

6. The Role of AI and Machine Learning in Diagnostics

7. Challenges in Modern Automotive Diagnostics

8. The Future of Vehicle Diagnostics

By the end of this article, you will have a thorough understanding of automotive diagnostics, its importance, and how it continues to shape the future of vehicle maintenance.

1. The Evolution of Automotive Diagnostics

Early Days: Mechanical Diagnostics

Before the 1980s, vehicle diagnostics were primarily mechanical. Mechanics relied on their experience, visual inspections, and basic tools to identify issues. Common methods included:

• Listening for unusual engine noises

• Checking spark plugs and ignition systems

• Manual compression tests

While effective for older, simpler vehicles, these methods were time-consuming and often inaccurate for complex problems.

Introduction of On-Board Diagnostics (OBD)

In the 1980s, car manufacturers began integrating On-Board Diagnostics (OBD) systems into vehicles. The first iteration, OBD-I, was a basic system that could detect engine-related faults and trigger a “Check Engine” light. However, OBD-I lacked standardization, meaning each manufacturer had its own proprietary codes and connectors.

OBD-II: The Game Changer

In 1996, the OBD-II standard was mandated in the U.S., revolutionizing automotive diagnostics. Key improvements included:

• Standardized Diagnostic Trouble Codes (DTCs)

• Universal 16-pin OBD-II connector

• Real-time data monitoring

• Emissions system monitoring

OBD-II made diagnostics faster, more accurate, and accessible to both professionals and DIY enthusiasts.

Modern Diagnostics: AI and Connected Vehicles

Today, diagnostics have gone beyond OBD-II with:

• Wireless OBD scanners (Bluetooth/Wi-Fi)

• Cloud-based diagnostics (remote vehicle monitoring)

• AI-powered predictive maintenance

• Integrated telematics systems (e.g., Tesla’s over-the-air diagnostics)

The shift towards electric vehicles (EVs) and autonomous cars is further transforming diagnostics, requiring new tools and expertise.

2. How Automotive Diagnostics Work

Automotive diagnostics involve scanning a vehicle’s onboard computer systems to identify faults. Here’s how the process works:

Step 1: Connecting a Diagnostic Tool

A scan tool or diagnostic software is connected to the vehicle’s OBD-II port (usually located under the dashboard).

Step 2: Retrieving Trouble Codes

The tool communicates with the Engine Control Unit (ECU) and other modules to retrieve Diagnostic Trouble Codes (DTCs).

Step 3: Interpreting the Codes

Each DTC corresponds to a specific issue, such as:

• P0171 (System Too Lean)

• P0300 (Random/Multiple Cylinder Misfire)

• U0100 (Lost Communication with ECM)

Step 4: Performing Further Tests

Mechanics may conduct additional tests, such as:

• Live data streaming (monitoring sensor readings in real-time)

• Component testing (checking fuel injectors, oxygen sensors, etc.)

• Smoke tests (detecting vacuum leaks)

Step 5: Repairing the Issue

Once the problem is identified, the faulty component is repaired or replaced, and the trouble codes are cleared.

3. Common Diagnostic Tools and Equipment

Modern automotive diagnostics rely on various tools, including:

Basic OBD-II Scanners

• Reads and clears trouble codes

• Displays live sensor data

• Affordable for DIY use (e.g., BlueDriver, Autel MaxiCOM)

Advanced Diagnostic Scanners

• Bi-directional control (testing actuators like fuel pumps)

• ECU programming (flashing updated software)

• Brand-specific capabilities (e.g., Snap-On MODIS, Bosch KTS)

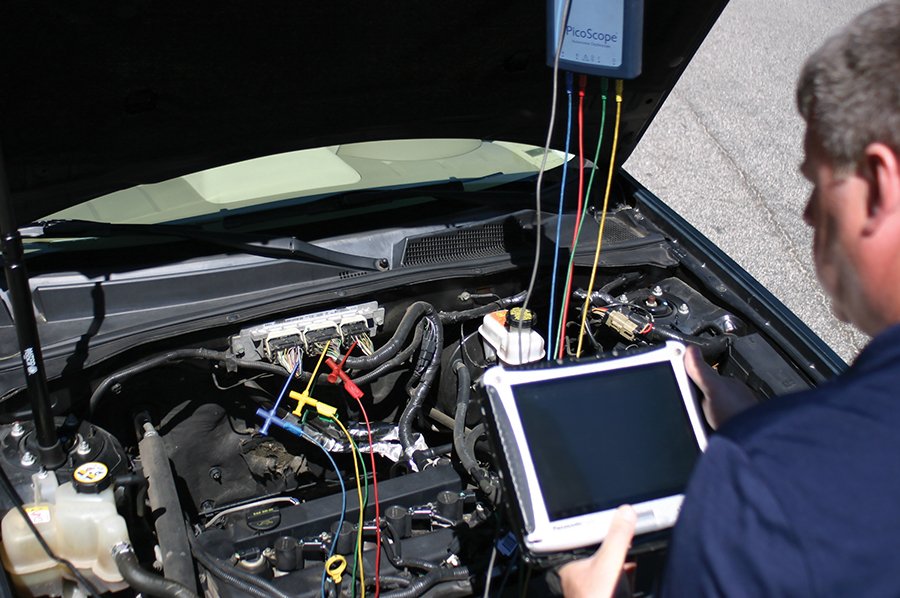

Oscilloscopes

• Measures electrical signals (e.g., ignition waveforms)

• Useful for diagnosing intermittent electrical faults

Multimeters

• Tests voltage, resistance, and continuity

• Essential for electrical diagnostics

Smoke Machines

• Detects vacuum and exhaust leaks

Battery and Charging System Testers

• Checks alternator and battery health

AI-Powered Diagnostic Software

• Uses machine learning to predict failures

• Examples: FIXD, Carly, Delphi Technologies

4. OBD-I vs. OBD-II: Key Differences

OBD-II is now the global standard, but some older vehicles still use OBD-I, requiring adapter cables for diagnostics.

5. Key Diagnostic Trouble Codes (DTCs) and Their Meanings

DTCs follow a standardized format:

• P = Powertrain (Engine/Transmission)

• B = Body (Airbags, HVAC)

• C = Chassis (ABS, Traction Control)

• U = Network (Communication errors)

Common Engine Codes

• P0171/P0174 – Lean fuel mixture (vacuum leak, bad O2 sensor)

• P0300 – Random misfire (spark plugs, fuel injectors, ignition coils)

• P0420 – Catalytic converter efficiency below threshold

Transmission Codes

• P0700 – Transmission control system malfunction

• P0750 – Shift solenoid failure

ABS & Brake Codes

• C0128 – Low brake fluid

• C0245 – Wheel speed sensor fault

Electrical & Communication Codes

• U0100 – Lost communication with ECM

• B1000 – Airbag control module fault

Understanding these codes helps mechanics quickly pinpoint issues.

6. The Role of AI and Machine Learning in Diagnostics

Artificial Intelligence (AI) is revolutionizing automotive diagnostics with:

Predictive Maintenance

• AI analyzes driving patterns and sensor data to predict failures before they occur.

Fault Pattern Recognition

• Machine learning identifies recurring issues across vehicle models, improving repair accuracy.

Automated Diagnostics

• AI-powered tools like Tesla’s remote diagnostics can detect and sometimes fix issues via over-the-air updates.

Voice-Activated Diagnostics

• Virtual assistants (e.g., Amazon Alexa, Google Assistant) can now retrieve diagnostic data via voice commands.

7. Challenges in Modern Automotive Diagnostics

Despite advancements, challenges remain:

Increasing Vehicle Complexity

• Hybrid and electric vehicles require specialized diagnostic tools.

• Advanced driver-assistance systems (ADAS) add new layers of complexity.

Proprietary Software Restrictions

• Some manufacturers (e.g., Tesla, BMW) limit third-party access to diagnostic data.

Cybersecurity Risks

• Connected vehicles are vulnerable to hacking, requiring secure diagnostic protocols.

Shortage of Skilled Technicians

• The rapid evolution of automotive tech demands continuous training for mechanics.

8. The Future of Automotive Diagnostics

The future of diagnostics includes:

Over-the-Air (OTA) Diagnostics & Updates

• Cars will self-diagnose and receive software patches remotely.

Augmented Reality (AR) Diagnostics

• Mechanics will use AR glasses to overlay diagnostic data in real-time.

Blockchain for Secure Vehicle Data

• Ensures tamper-proof diagnostic logs for recalls and warranty claims.

Autonomous Vehicle Self-Diagnostics

• Self-driving cars will perform continuous system checks and schedule their own repairs.

Conclusion

Automotive diagnostics have come a long way from manual inspections to AI-powered predictive maintenance. With the rise of electric vehicles, connected cars, and autonomous driving, diagnostics will continue to evolve, making vehicle maintenance faster, smarter, and more efficient.

Whether you’re a professional mechanic or a car owner, understanding automotive diagnostics helps ensure better vehicle performance, safety, and cost savings. Investing in the right diagnostic tools and staying updated with emerging technologies will be key to navigating the future of automotive repair.

By embracing these advancements, the automotive industry is paving the way for smarter, self-healing vehicles that minimize downtime and maximize reliability.
