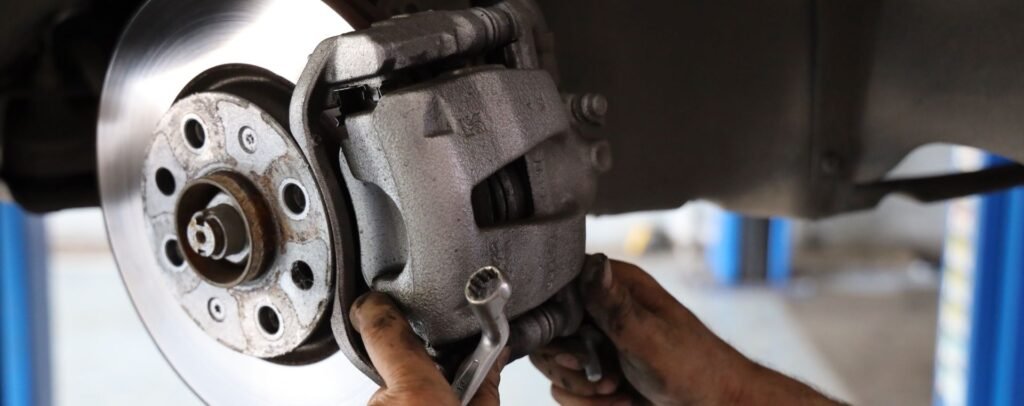

Brake Calipers: The Unsung Heroes of Vehicle Safety

When it comes to vehicle safety, few components are as critical as the brake system. Among the various parts that make up this system, brake calipers play a pivotal role in ensuring that your vehicle can stop effectively and safely. Despite their importance, brake calipers often go unnoticed by the average driver. This article aims to shed light on these unsung heroes, exploring their function, types, maintenance, and the latest advancements in brake caliper technology.

1. Introduction to Brake Calipers

Brake calipers are a crucial component of the disc brake system, which is the most common type of braking system used in modern vehicles. The primary function of a brake caliper is to squeeze the brake pads against the rotor (or disc) to create the friction necessary to slow down or stop the vehicle. This process converts the kinetic energy of the moving vehicle into thermal energy, which is then dissipated into the surrounding air.

2. How Brake Calipers Work

To understand the importance of brake calipers, it’s essential to grasp how they function within the broader context of the braking system. Here’s a step-by-step breakdown of the process:

1. Brake Pedal Activation: When the driver presses the brake pedal, hydraulic pressure is generated in the brake lines. This pressure is transmitted to the brake calipers.
2. Piston Movement: Inside the brake caliper, one or more pistons are housed. The hydraulic pressure forces these pistons to move outward.
3. Brake Pad Engagement: As the pistons move, they push the brake pads against the rotor. The friction generated between the pads and the rotor slows down the rotation of the wheels.
4. Heat Dissipation: The friction between the brake pads and the rotor generates heat. The rotor, being made of metal, is designed to dissipate this heat quickly to prevent overheating and brake fade.
5. Release: When the driver releases the brake pedal, the hydraulic pressure decreases, and the pistons retract. This allows the brake pads to move away from the rotor, enabling the wheels to rotate freely once again.

3. Types of Brake Calipers

Brake calipers come in various designs, each with its own set of advantages and disadvantages. The three main types of brake calipers are:

3.1. Floating Calipers (Sliding Calipers)

Floating calipers are the most common type of brake calipers found in modern vehicles. They are called “floating” because they are not fixed in place; instead, they can move slightly relative to the rotor. Here’s how they work:

• Single Piston Design: Floating calipers typically have a single piston on one side of the rotor. When the brake pedal is pressed, the piston pushes the inner brake pad against the rotor.
• Sliding Mechanism: As the inner pad makes contact with the rotor, the caliper body slides or floats on guide pins, bringing the outer pad into contact with the rotor. This action ensures that both pads apply equal pressure to the rotor.
• Advantages: Floating calipers are relatively simple in design, lightweight, and cost-effective. They are also easier to maintain and repair compared to other types of calipers.
• Disadvantages: The sliding mechanism can sometimes lead to uneven pad wear, and the caliper may not apply as much clamping force as fixed calipers.

3.2. Fixed Calipers

Fixed calipers are more commonly found in high-performance and luxury vehicles. Unlike floating calipers, fixed calipers are rigidly mounted to the vehicle’s suspension or axle and do not move. Here’s how they operate:

• Multiple Pistons: Fixed calipers typically have pistons on both sides of the rotor. When the brake pedal is pressed, hydraulic pressure forces the pistons on both sides to move simultaneously, pressing the brake pads against the rotor.
• Even Pressure Distribution: Because the caliper is fixed and the pistons are on both sides, fixed calipers provide more even pressure distribution across the rotor. This results in more consistent braking performance and reduced brake fade.
• Advantages: Fixed calipers offer superior braking performance, especially under high-stress conditions such as racing or heavy towing. They also tend to have better heat dissipation properties.
• Disadvantages: Fixed calipers are more complex, heavier, and more expensive than floating calipers. They also require more maintenance and are more challenging to repair.

3.3. Opposed Piston Calipers

Opposed piston calipers are a subtype of fixed calipers and are often used in high-performance and racing applications. They feature pistons on both sides of the rotor, but the pistons are arranged in an opposed configuration. Here’s how they differ:

• Piston Arrangement: In opposed piston calipers, the pistons are positioned directly opposite each other. This arrangement allows for even greater clamping force and more precise control over braking.
• Enhanced Performance: Opposed piston calipers are known for their exceptional braking performance, particularly in high-speed and high-temperature conditions. They provide excellent modulation and feel, making them a favorite among performance enthusiasts.
• Advantages: Opposed piston calipers offer the highest level of braking performance, with excellent heat dissipation and reduced brake fade. They are also highly durable and can withstand extreme conditions.
• Disadvantages: These calipers are the most expensive and complex type, making them less common in everyday vehicles. They also require more maintenance and are heavier than other types of calipers.

4. Materials Used in Brake Calipers

The materials used in the construction of brake calipers have a significant impact on their performance, durability, and weight. The most common materials used are:

4.1. Cast Iron

Cast iron is the traditional material used for brake calipers due to its excellent strength and heat resistance. It is also relatively inexpensive, making it a popular choice for mass-produced vehicles.

• Advantages: Cast iron calipers are durable, cost-effective, and provide good braking performance for everyday driving.
• Disadvantages: Cast iron is heavy, which can negatively impact vehicle performance, especially in terms of acceleration and fuel efficiency. It is also prone to rust and corrosion over time.

4.2. Aluminum

Aluminum is increasingly being used in brake calipers, particularly in high-performance and luxury vehicles. It offers a good balance between strength and weight.

• Advantages: Aluminum calipers are significantly lighter than cast iron, which can improve vehicle performance and fuel efficiency. They also have better heat dissipation properties, reducing the risk of brake fade.
• Disadvantages: Aluminum is more expensive than cast iron and is not as strong, which can limit its use in heavy-duty applications. It is also more susceptible to corrosion in certain environments.

4.3. Composite Materials

Some high-end and racing brake calipers are made from composite materials, such as carbon-ceramic or carbon-fiber-reinforced polymers. These materials offer exceptional performance but come at a high cost.

• Advantages: Composite calipers are extremely lightweight and offer superior heat resistance and braking performance. They are also highly resistant to corrosion and wear.
• Disadvantages: The primary drawback of composite calipers is their cost. They are significantly more expensive than traditional materials and are typically reserved for high-performance or luxury vehicles.

5. Maintenance and Common Issues

Like any other component of a vehicle, brake calipers require regular maintenance to ensure optimal performance and longevity. Here are some common maintenance tasks and issues to be aware of:

5.1. Regular Inspection

Brake calipers should be inspected regularly, ideally during every oil change or tire rotation. Look for signs of wear, corrosion, or damage to the caliper body, pistons, and seals.

5.2. Lubrication

The sliding pins or guide pins in floating calipers need to be lubricated periodically to ensure smooth operation. Use a high-temperature brake grease to prevent the pins from seizing.

5.3. Brake Fluid

Brake fluid is essential for the proper functioning of the hydraulic system in brake calipers. Check the brake fluid level regularly and replace it according to the manufacturer’s recommendations. Contaminated or old brake fluid can lead to reduced braking performance and potential damage to the calipers.

5.4. Common Issues

• Sticking Calipers: Over time, brake calipers can become stuck due to corrosion, dirt, or lack of lubrication. This can cause uneven brake pad wear, reduced braking performance, and even brake drag.
• Leaking Seals: The seals inside the brake caliper can wear out or become damaged, leading to brake fluid leaks. This can result in a loss of hydraulic pressure and reduced braking effectiveness.
• Piston Corrosion: The pistons inside the caliper can corrode, especially if the vehicle is driven in harsh conditions. Corroded pistons can seize, preventing the caliper from functioning properly.
• Uneven Pad Wear: If the caliper is not applying even pressure to the brake pads, it can lead to uneven wear. This can be caused by sticking calipers, worn guide pins, or misaligned components.

6. Advancements in Brake Caliper Technology

As automotive technology continues to evolve, so too does brake caliper technology. Here are some of the latest advancements in this field:

6.1. Lightweight Materials

The use of lightweight materials, such as aluminum and composite materials, is becoming more widespread in brake caliper design. These materials help reduce the overall weight of the vehicle, improving performance and fuel efficiency.

6.2. Monoblock Calipers

Monoblock calipers are made from a single piece of material, rather than being bolted together from multiple parts. This design offers increased strength and rigidity, making it ideal for high-performance applications.

6.3. Electric Parking Brakes

Some modern vehicles are equipped with electric parking brakes, which use an electric motor to actuate the brake caliper. This eliminates the need for a traditional handbrake lever and allows for more precise control over the parking brake.

6.4. Integrated Calipers

Integrated calipers combine the functions of the brake caliper and the wheel bearing into a single unit. This design reduces the number of components, simplifying the braking system and reducing weight.

6.5. Advanced Coatings

To improve durability and resistance to corrosion, some brake calipers are now coated with advanced materials, such as ceramic or polymer coatings. These coatings help protect the caliper from the elements and extend its lifespan.

7. Conclusion

Brake calipers may not be the most glamorous part of a vehicle, but they are undoubtedly one of the most important. Without properly functioning brake calipers, a vehicle’s ability to stop safely and effectively would be severely compromised. Understanding how brake calipers work, the different types available, and how to maintain them is essential for any vehicle owner.

As automotive technology continues to advance, we can expect to see even more innovations in brake caliper design and materials. These advancements will not only improve braking performance but also contribute to the overall safety and efficiency of vehicles. Whether you’re driving a compact car, a high-performance sports car, or a heavy-duty truck, the brake calipers are working tirelessly behind the scenes to ensure your safety on the road. So, the next time you press the brake pedal, take a moment to appreciate the critical role that brake calipers play in keeping you and your passengers safe.
