Modern vehicles are equipped with advanced computer systems that monitor and control various components, from the engine and transmission to safety features and infotainment. When something goes wrong, these systems generate error codes that can be read using diagnostic tools. Car diagnostics is the process of identifying and troubleshooting issues within a vehicle using specialized equipment and software.

This guide explores the fundamentals of car diagnostics, the tools used, common diagnostic trouble codes (DTCs), and how both professionals and DIY enthusiasts can benefit from understanding vehicle diagnostics.

1. What is Car Diagnostics?

Car diagnostics refers to the process of scanning a vehicle’s onboard computer systems to identify malfunctions, performance issues, or potential failures. Modern cars rely on an On-Board Diagnostics (OBD) system, which continuously monitors sensors and components. When an issue arises, the system logs a Diagnostic Trouble Code (DTC), which can be retrieved using a diagnostic scanner.

Types of OBD Systems

• OBD-I (Pre-1996): Early systems were manufacturer-specific, making diagnostics difficult without proprietary tools.

• OBD-II (Post-1996): Standardized across all vehicles sold in the U.S. and Europe, allowing universal scanners to read codes.

2. How Car Diagnostics Work

Step 1: Connecting a Diagnostic Tool

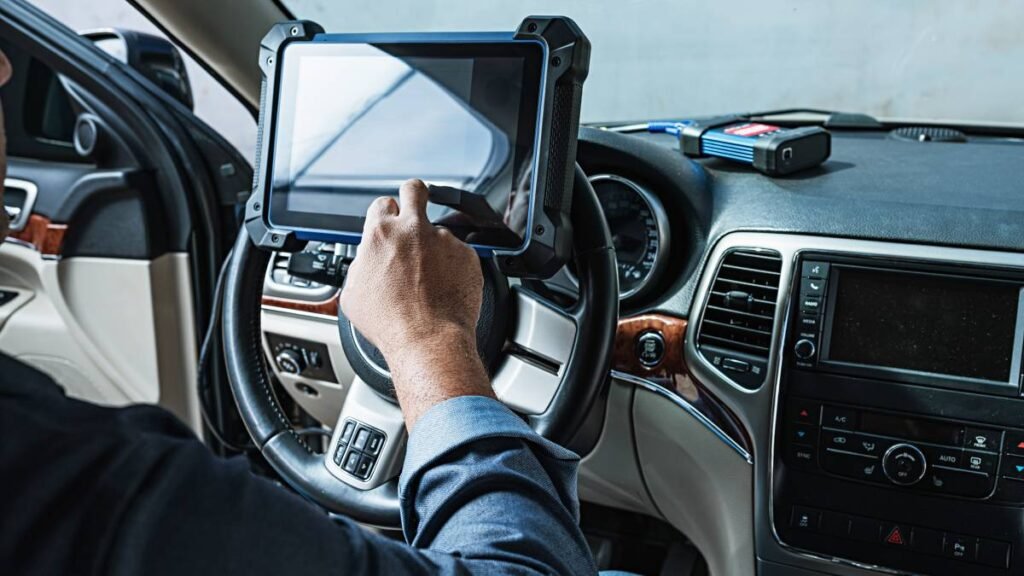

A diagnostic scanner or code reader is plugged into the OBD-II port, typically located under the dashboard near the steering wheel.

Step 2: Retrieving Trouble Codes

The scanner communicates with the vehicle’s Engine Control Unit (ECU) and retrieves stored DTCs. These codes indicate specific problems, such as:

• P0xxx (Powertrain Codes): Engine, transmission, fuel system issues.

• B0xxx (Body Codes): Airbags, climate control, power windows.

• C0xxx (Chassis Codes): ABS, traction control, suspension.

• U0xxx (Network Codes): Communication errors between modules.

Step 3: Interpreting the Codes

Each code corresponds to a specific issue (e.g., P0300 – Random/Multiple Cylinder Misfire). Mechanics use service manuals or online databases to interpret these codes.

Step 4: Performing Repairs

Once the issue is identified, repairs or part replacements are carried out. After fixing the problem, the codes are cleared, and the system is retested.

3. Essential Car Diagnostic Tools

A. OBD-II Scanners

• Basic Code Readers: Display DTCs but don’t provide live data (e.g., Innova 3100).

• Advanced Scan Tools: Offer real-time data, graphing, and advanced functions (e.g., Autel MaxiCOM).

• Professional Diagnostic Systems: Used by dealerships (e.g., Snap-On Modis, Bosch KTS).

B. Multimeters and Oscilloscopes

• Used for checking electrical signals, sensor outputs, and wiring issues.

C. Smoke Machines

• Detect vacuum leaks in the engine or EVAP system.

D. Battery and Charging System Testers

• Ensure proper voltage and alternator function.

E. Software Solutions

• FORScan (For Ford, Mazda, Lincoln)

• VCDS (VAG-COM for Volkswagen/Audi)

• BlueDriver (Bluetooth OBD-II Scanner with App)

4. Common Diagnostic Trouble Codes (DTCs) and Their Meanings

5. DIY Car Diagnostics: Tips for Beginners

A. Start with a Basic OBD-II Scanner

Affordable scanners like the Ancel AD310 or BlueDriver provide code readings and basic live data.

B. Use Free Resources

• Online Code Databases: Websites like OBD-Codes.com explain DTCs.

• YouTube Tutorials: Step-by-step repair guides.

• Forums: Reddit’s r/MechanicAdvice or specialized car forums.

C. Check for Simple Fixes First

• Loose gas cap (often triggers P0455).

• Dirty MAF sensor (causes lean/rich codes).

• Worn spark plugs (leads to misfires).

D. Clear Codes and Test Drive

After repairs, clear the codes and see if they return. Persistent codes indicate unresolved issues.

6. When to Visit a Professional Mechanic

While DIY diagnostics can solve many problems, some issues require professional expertise:

• Complex electrical faults (CAN bus errors).

• Transmission or ABS system failures.

• Airbag/SRS system warnings.

• Intermittent issues not logged as DTCs.

7. The Future of Car Diagnostics

A. Wireless and Cloud-Based Diagnostics

• Bluetooth OBD adapters (e.g., OBDLink MX+) sync with smartphones.

• Remote diagnostics via telematics (Tesla, BMW ConnectedDrive).

B. AI-Powered Diagnostics

• Predictive maintenance using machine learning.

• Automated fault detection in real-time.

C. Electric Vehicle (EV) Diagnostics

• Specialized tools for battery health, motor controllers, and charging systems.

Conclusion

Car diagnostics is an essential skill for modern vehicle maintenance, helping drivers and mechanics quickly identify and resolve issues. With the right tools and knowledge, even beginners can troubleshoot common problems before visiting a professional. As automotive technology evolves, diagnostics will become even more advanced, integrating AI, wireless connectivity, and predictive analytics.

Whether you’re a car enthusiast or a professional technician, understanding diagnostics ensures smoother, safer, and more efficient vehicle performance.
