The engine oil pump is a critical component of any internal combustion engine, responsible for circulating oil to lubricate moving parts, reduce friction, and prevent overheating. When the oil pump fails, it can lead to severe engine damage due to insufficient lubrication. Replacing an oil pump is a complex but necessary procedure for maintaining engine health.

This guide covers:

• Signs of a failing oil pump

• Tools and materials needed for replacement

• Step-by-step replacement process

• Common mistakes to avoid

• Maintenance tips to prolong oil pump life

By the end of this article, you’ll have a thorough understanding of oil pump replacement and whether you should attempt the job yourself or seek professional help.

Signs of a Failing Oil Pump

Before replacing the oil pump, it’s essential to confirm that it’s the actual problem. Here are key symptoms of a failing oil pump:

1. Low Oil Pressure Warning Light

• The most obvious sign is the oil pressure warning light illuminating on the dashboard.

• Low oil pressure can result from a weak or damaged oil pump.

2. Engine Noise (Knocking or Ticking)

• Without proper lubrication, metal components grind against each other, causing knocking or ticking sounds.

• This is often a sign of advanced wear due to oil starvation.

3. Overheating Engine

• Oil helps dissipate heat; a failing pump reduces cooling efficiency, leading to overheating.

4. Dirty or Contaminated Oil

• Metal shavings or debris in the oil may indicate pump wear.

• A clogged oil pickup screen can also reduce oil flow.

5. Oil Leaks

• A damaged oil pump housing or gasket can cause leaks, reducing oil pressure.

If these symptoms appear, check the oil level first. If the oil level is adequate but pressure remains low, the oil pump may need replacement.

Tools and Materials Needed

Before starting the replacement, gather the following tools and parts:

Tools:

• Socket set & ratchet

• Torque wrench

• Oil filter wrench

• Screwdrivers (flathead & Phillips)

• Oil drain pan

• Jack and jack stands (or a lift)

• Gasket scraper

• Brake cleaner (for cleaning surfaces)

• Engine oil (correct grade for your vehicle)

• New oil filter

Replacement Parts:

• New oil pump (OEM or high-quality aftermarket)

• Oil pump gasket or sealant (depending on design)

• New engine oil (as per manufacturer’s recommendation)

• Oil pan gasket (if required)

Step-by-Step Oil Pump Replacement Guide

Step 1: Prepare the Vehicle

• Park on a level surface and engage the parking brake.

• Lift the vehicle using a jack and secure it with jack stands.

• Disconnect the battery to prevent accidental starts.

Step 2: Drain the Engine Oil

• Place an oil drain pan beneath the oil plug.

• Remove the drain plug and let the oil fully drain.

• Remove the oil filter to allow complete drainage.

Step 3: Remove the Oil Pan

• Locate and remove all oil pan bolts.

• Gently pry the oil pan loose (some vehicles may require additional components to be moved, like exhaust parts).

• Clean the oil pan and inspect for metal debris.

Step 4: Remove the Old Oil Pump

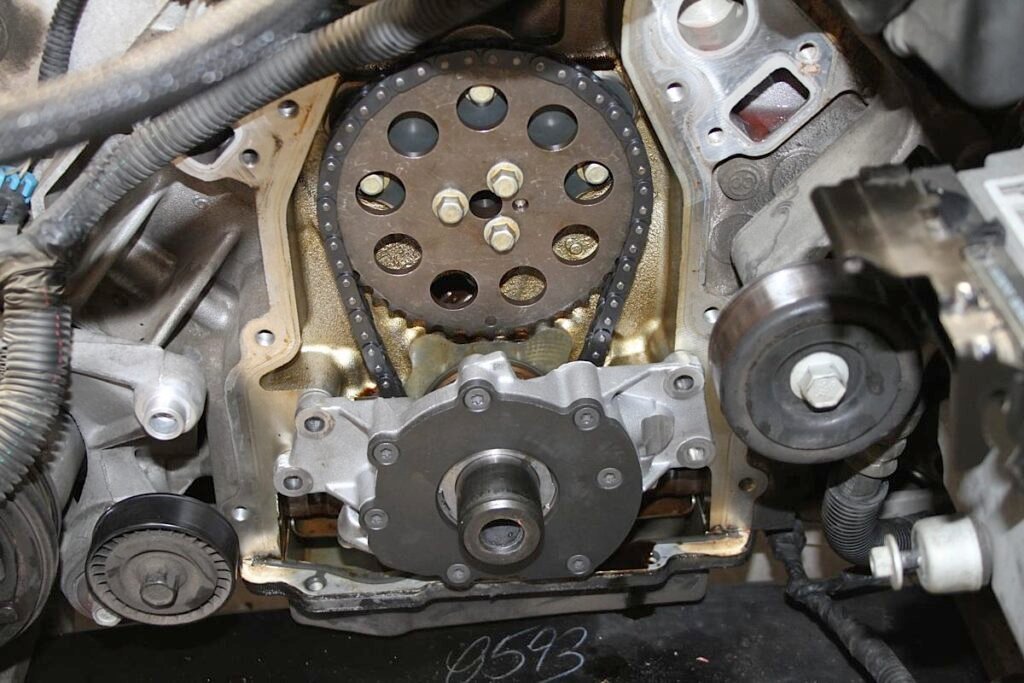

• Locate the oil pump (usually mounted near the crankshaft).

• Remove mounting bolts and carefully detach the pump.

• Inspect the pickup tube for clogs or damage.

Step 5: Install the New Oil Pump

• Clean the mounting surface thoroughly.

• Apply gasket sealant (if required) or install a new gasket.

• Secure the new pump with bolts, torquing them to manufacturer specifications.

• Reattach the pickup tube if it was removed.

Step 6: Reinstall the Oil Pan

• Clean the oil pan mating surface.

• Install a new gasket (or apply RTV sealant).

• Reattach the oil pan and tighten bolts in a crisscross pattern.

Step 7: Refill with Fresh Oil

• Install a new oil filter.

• Refill the engine with the correct oil type and quantity.

Step 8: Test for Leaks and Pressure

• Reconnect the battery.

• Start the engine and monitor the oil pressure light.

• Check for leaks under the vehicle.

• Shut off the engine and recheck oil levels.

Common Mistakes to Avoid

1. Skipping the Oil Pan Inspection – Debris in the pan can indicate other engine issues.

2. Incorrect Torque on Bolts – Over-tightening can damage gaskets; under-tightening can cause leaks.

3. Using the Wrong Oil – Always use the manufacturer-recommended oil viscosity.

4. Ignoring the Pickup Tube – A clogged pickup tube can starve the engine of oil.

5. Not Priming the New Pump – Some pumps require pre-lubrication to prevent dry starts.

Maintenance Tips to Extend Oil Pump Life

1. Regular Oil Changes – Dirty oil increases wear on the pump.

2. Use High-Quality Oil & Filters – Cheap filters can restrict flow.

3. Monitor Oil Pressure – Address drops in pressure immediately.

4. Check for Leaks – Fix any oil leaks promptly.

5. Avoid Overheating – Excessive heat degrades oil faster.

When to Seek Professional Help

While DIY replacement is possible for experienced mechanics, consider professional help if:

• The engine requires major disassembly (timing chain removal, etc.).

• You lack specialized tools.

• You’re unsure about diagnosing the issue correctly.

A mistake in oil pump replacement can lead to catastrophic engine failure.

Conclusion

Replacing an engine oil pump is a demanding but essential repair when signs of failure appear. Proper diagnosis, high-quality parts, and careful installation are crucial for success. Regular maintenance helps prevent premature oil pump failure, ensuring your engine runs smoothly for years.

If you’re confident in your mechanical skills, follow this guide for a successful replacement. If not, consult a professional mechanic to avoid costly mistakes.

By understanding the oil pump’s role and replacement process, you can make informed decisions about your vehicle’s maintenance and longevity.
