The fuel gauge sending unit is a crucial component of your vehicle’s fuel system, responsible for measuring the fuel level in the tank and relaying this information to the fuel gauge on your dashboard. When this component fails, it can lead to inaccurate fuel readings, leaving you at risk of running out of gas unexpectedly.

Replacing a faulty fuel gauge sending unit is a necessary repair to ensure accurate fuel monitoring and safe driving. This article provides a detailed guide on fuel gauge sending unit replacement, covering symptoms of failure, replacement costs, step-by-step procedures, and maintenance tips.

What Is a Fuel Gauge Sending Unit?

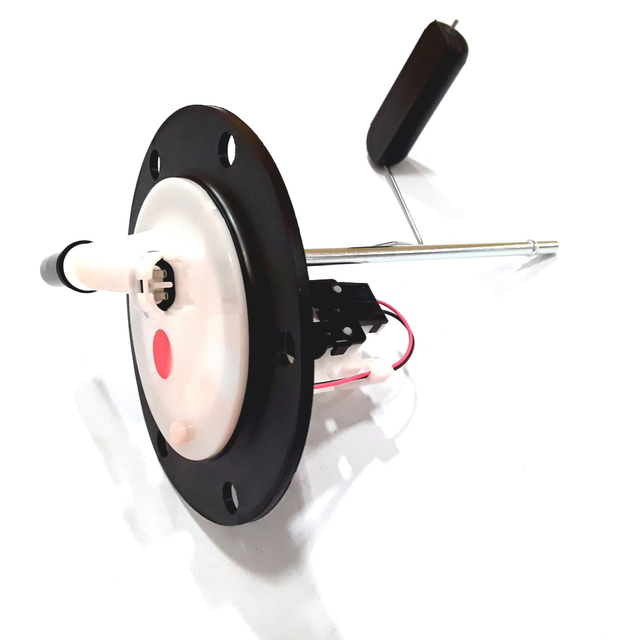

The fuel gauge sending unit is an assembly typically located inside the fuel tank. It consists of:

• A float arm – Moves up and down with the fuel level.

• A variable resistor (potentiometer) – Changes resistance based on the float position, sending signals to the fuel gauge.

• A fuel pump (in some vehicles) – Modern vehicles often integrate the fuel pump with the sending unit.

When functioning correctly, the sending unit ensures that the fuel gauge provides an accurate reading of how much fuel remains in the tank.

Symptoms of a Failing Fuel Gauge Sending Unit

A malfunctioning fuel gauge sending unit can cause several noticeable issues:

1. Inaccurate Fuel Gauge Readings

• The fuel gauge may show full when the tank is empty or empty when the tank is full.

• The needle may fluctuate erratically while driving.

2. Stuck Fuel Gauge Needle

• The fuel gauge does not move regardless of fuel level changes.

3. Sudden Drops in Fuel Level

• The gauge may drop abruptly from full to empty without reason.

4. Check Engine Light (CEL) Illumination

• Some vehicles trigger a diagnostic trouble code (DTC) related to the fuel level sensor (e.g., P0460-P0464).

5. Vehicle Stalling Due to Empty Tank

• If the gauge fails to warn of low fuel, the engine may stall unexpectedly.

Causes of Fuel Gauge Sending Unit Failure

Several factors can lead to sending unit failure:

• Wear and Tear – Over time, the float arm or resistor can degrade.

• Corrosion – Exposure to moisture or contaminated fuel can damage electrical contacts.

• Fuel Contamination – Dirt, debris, or rust in the tank can interfere with the float mechanism.

• Electrical Issues – Faulty wiring or poor connections disrupt signal transmission.

• Physical Damage – Impact from accidents or improper handling can bend or break the float arm.

Diagnosing a Faulty Fuel Gauge Sending Unit

Before replacing the sending unit, confirm that the issue isn’t caused by a faulty fuel gauge, wiring, or fuse.

Step 1: Check the Fuel Gauge

• Turn the ignition to the ON position (without starting the engine).

• Observe if the fuel gauge moves. If it stays on empty, there may be an issue with the sending unit or wiring.

Step 2: Inspect the Fuse

• Locate the fuse box (refer to the owner’s manual).

• Check the fuse related to the instrument cluster or fuel pump.

Step 3: Test the Sending Unit with a Multimeter

• Access the sending unit (usually through an access panel or by dropping the fuel tank).

• Disconnect the electrical connector.

• Use a multimeter to measure resistance between the sending unit terminals while manually moving the float:

  • Full Tank Position – Should show low resistance (e.g., 10-20 ohms).

  • Empty Tank Position – Should show high resistance (e.g., 70-100 ohms).

• If readings are inconsistent or show no resistance, the sending unit is faulty.

Fuel Gauge Sending Unit Replacement Cost

The cost of replacing a fuel gauge sending unit varies depending on:

Factors Affecting Cost:

• Vehicle Make & Model – Luxury or rare vehicles have higher part costs.

• Labor Intensity – Some vehicles require fuel tank removal, increasing labor time.

• Integrated Fuel Pump – If the pump is part of the assembly, replacement costs rise.

Step-by-Step Fuel Gauge Sending Unit Replacement Guide

Tools & Materials Needed:

• New fuel gauge sending unit

• Socket set & wrenches

• Jack & jack stands (if tank removal is needed)

• Fuel line disconnect tool

• Safety gloves & goggles

• Drain pan (for fuel)

• Fire extinguisher (safety precaution)

Step 1: Relieve Fuel System Pressure

• Disconnect the negative battery terminal.

• Locate the fuel pump fuse/relay and remove it.

• Start the engine and let it stall to depressurize the system.

Step 2: Drain the Fuel Tank (If Necessary)

• Use a siphon pump to remove fuel, or drive until the tank is nearly empty.

• Place a drain pan beneath the tank.

Step 3: Access the Sending Unit

• Option A (Access Panel): Some vehicles have an access panel under the rear seat or trunk.

• Option B (Drop the Tank): If no access panel exists, the tank must be lowered:

  • Support the tank with a jack.

  • Disconnect fuel lines, vent hoses, and electrical connectors.

  • Remove straps or bolts securing the tank.

Step 4: Remove the Old Sending Unit

• Unplug the electrical connector.

• Unscrew the locking ring (if applicable) using a spanner wrench.

• Carefully lift out the sending unit assembly.

Step 5: Install the New Sending Unit

• Compare the old and new units for compatibility.

• Insert the new sending unit, ensuring the float moves freely.

• Secure the locking ring and reconnect all wires and hoses.

Step 6: Reassemble & Test

• Reinstall the fuel tank (if removed) and reconnect all components.

• Reconnect the battery terminal.

• Turn the ignition ON (without starting) and check if the fuel gauge responds.

• Start the engine and verify for leaks.

Preventive Maintenance Tips

To extend the life of your fuel gauge sending unit:

• Use High-Quality Fuel – Avoid contaminated or low-grade gasoline.

• Keep the Fuel Tank Above 1/4 Full – Prevents sediment from clogging the unit.

• Inspect Electrical Connections – Check for corrosion or loose wires periodically.

• Address Fuel System Issues Promptly – Fix leaks or pump problems early.

Conclusion

A malfunctioning fuel gauge sending unit can lead to unreliable fuel readings and potential breakdowns. Recognizing the symptoms early and replacing the faulty unit ensures accurate fuel monitoring and prevents unexpected stalling. While the replacement process can be labor-intensive, following proper steps and safety precautions will help restore your vehicle’s fuel gauge functionality.

If you’re unsure about DIY replacement, consult a professional mechanic to avoid fuel system complications. Regular maintenance and quality fuel usage will help prolong the lifespan of your new sending unit, keeping your fuel readings accurate for years to come.
