The intake manifold is a critical component in an internal combustion engine, responsible for distributing the air-fuel mixture (in carbureted or throttle-body injected engines) or just air (in port fuel-injected or direct-injected engines) to the engine’s cylinders. Here’s a detailed breakdown:

Functions of the Intake Manifold:

1. Air Distribution – Evenly distributes air (or air-fuel mixture) to each cylinder to ensure balanced combustion.

2. Airflow Optimization – Designed to minimize turbulence and maximize airflow efficiency.

3. Mounting Point – Often houses throttle body, fuel injectors (in some designs), and sensors like the MAP (Manifold Absolute Pressure) or MAF (Mass Air Flow) sensor.

4. Plenum Chamber – Contains a plenum (a large cavity) to help equalize pressure and reduce pulsations from engine cycles.

5. Coolant Passages (in some designs) – Heated manifolds help vaporize fuel in cold conditions (common in older carbureted engines).

Types of Intake Manifolds:

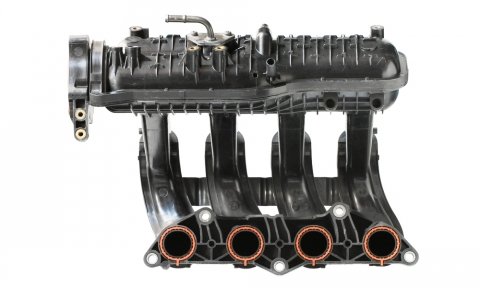

1. Plastic (Composite) Manifolds

   • Lightweight and corrosion-resistant.

   • Common in modern engines for better fuel efficiency.

2. Aluminum Manifolds

   • Durable and better heat dissipation.

   • Often used in performance applications.

3. Cast Iron Manifolds

   • Found in older engines; heavy but durable.

4. Variable-Length Intake Manifolds

   • Adjusts runner length to optimize torque at different RPMs.

   • Uses valves or actuators to switch between short (high RPM) and long (low RPM) paths.

5. Dual-Plane vs. Single-Plane Manifolds (Performance Engines)

   • Dual-Plane: Better low-end torque (common in street engines).

   • Single-Plane: Optimized for high-RPM power (used in race engines).

Common Intake Manifold Issues:

• Cracks or Leaks – Can cause vacuum leaks, leading to rough idling or misfires.

• Carbon Buildup – Especially in direct-injection engines, affecting airflow.

• Gasket Failure – Leads to air/fuel mixture leaks.

• Coolant Leaks – If the manifold has integrated coolant passages.

Performance Upgrades:

• Cold Air Intake (CAI) – Improves airflow efficiency.

• Porting & Polishing – Smoothing the interior for better airflow.

• Aftermarket Manifolds – Designed for higher airflow (e.g., Edelbrock, Holley).
