A knock sensor is a critical component in modern internal combustion engines, designed to detect abnormal combustion events known as engine knock (or detonation). Here’s a breakdown of its function, importance, and operation:

1. What is Engine Knock?

• Knock occurs when the air-fuel mixture in the cylinder ignites prematurely or unevenly due to excessive heat, pressure, or incorrect ignition timing.

• This creates uncontrolled explosions (instead of smooth burns), causing a metallic “pinging” sound and potentially damaging the engine.

2. Purpose of the Knock Sensor

• The knock sensor detects vibrations or frequencies associated with knocking and sends a signal to the Engine Control Unit (ECU).

• The ECU then adjusts ignition timing, fuel mixture, or other parameters to prevent knock and protect the engine.

3. How It Works

• Piezoelectric Element: Most knock sensors use a piezoelectric crystal that generates a voltage when subjected to vibrations (knock frequencies typically range between 5 kHz to 15 kHz).

• Signal Processing: The ECU analyzes the sensor’s signal to distinguish knock from normal engine noise.

• Timing Adjustment: If knock is detected, the ECU retards ignition timing slightly to eliminate it.

4. Location

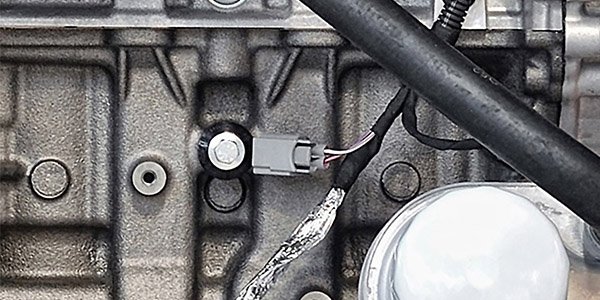

• Mounted on the engine block or cylinder head, often near the combustion chambers for accurate detection.

5. Symptoms of a Faulty Knock Sensor

• Check Engine Light (with codes like P0325–P0334).

• Poor Performance: Reduced power, acceleration, or fuel economy.

• Excessive Knock: Audible pinging under load due to unmanaged detonation.

• ECU Defaults to Safe Mode: Overly conservative timing to prevent damage.

6. Testing & Replacement

• Diagnostic Scan Tool: Check for trouble codes.

• Resistance Test: Some sensors can be tested with a multimeter (specs vary by model).

• Replacement: Usually straightforward but requires proper torque and positioning.

7. Importance

• Prevents engine damage (piston/cylinder wear, head gasket failure).

• Optimizes performance and fuel efficiency by allowing advanced timing when safe.
