Vehicle Engine Coolant Thermostat Replacement Service: A Comprehensive Guide

Introduction

The engine coolant thermostat is a critical component of a vehicle’s cooling system. It plays a vital role in regulating the engine’s operating temperature, ensuring that it runs efficiently and avoids overheating. Over time, the thermostat can wear out or fail, leading to potential engine damage if not addressed promptly. This article provides an in-depth look at the vehicle engine coolant thermostat replacement service, covering everything from the function of the thermostat to the steps involved in its replacement.

Understanding the Engine Coolant Thermostat

What is an Engine Coolant Thermostat?

The engine coolant thermostat is a valve that controls the flow of coolant between the engine and the radiator. It is typically located between the engine and the radiator, often housed in a housing unit connected to the upper or lower radiator hose. The thermostat’s primary function is to regulate the engine’s temperature by opening and closing in response to the coolant temperature.

How Does the Thermostat Work?

The thermostat operates based on the temperature of the coolant. When the engine is cold, the thermostat remains closed, preventing coolant from flowing to the radiator. This allows the engine to warm up quickly to its optimal operating temperature. Once the engine reaches the desired temperature, the thermostat opens, allowing coolant to flow through the radiator, where it is cooled before returning to the engine.

The thermostat contains a wax pellet that expands and contracts with temperature changes. When the coolant reaches a specific temperature (usually around 195°F or 90°C), the wax pellet expands, pushing a rod that opens the thermostat valve. Conversely, when the coolant temperature drops, the wax pellet contracts, allowing the valve to close.

Signs of a Failing Thermostat

A failing thermostat can lead to various issues, including engine overheating, poor fuel efficiency, and increased emissions. Some common signs that your vehicle’s thermostat may need replacement include:

1. Engine Overheating: If the thermostat fails to open, coolant cannot flow to the radiator, causing the engine to overheat.
2. Engine Running Too Cool: If the thermostat fails to close, the engine may run cooler than normal, leading to poor fuel efficiency and increased emissions.
3. Fluctuating Temperature Gauge: A malfunctioning thermostat can cause the temperature gauge to fluctuate erratically.
4. Coolant Leaks: A damaged thermostat housing or gasket can lead to coolant leaks.
5. Heater Issues: If the thermostat is stuck open, the heater may not produce warm air, as the engine may not reach the optimal temperature.

Importance of Timely Thermostat Replacement

Preventing Engine Damage

One of the primary reasons for timely thermostat replacement is to prevent engine damage. An overheating engine can cause severe damage to internal components, such as the cylinder head, pistons, and engine block. In extreme cases, overheating can lead to engine failure, requiring costly repairs or even engine replacement.

Maintaining Fuel Efficiency

A properly functioning thermostat ensures that the engine operates at its optimal temperature, which is crucial for maintaining fuel efficiency. If the engine runs too cool, it may not burn fuel efficiently, leading to increased fuel consumption and higher emissions.

Ensuring Comfortable Cabin Temperature

The thermostat also plays a role in maintaining a comfortable cabin temperature. If the thermostat is stuck open, the engine may not reach the optimal temperature, resulting in insufficient heat from the vehicle’s heater. This can be particularly problematic during cold weather, making it uncomfortable for passengers.

Avoiding Costly Repairs

Replacing a faulty thermostat is a relatively inexpensive repair compared to the potential costs of engine damage or other cooling system issues. By addressing thermostat problems early, you can avoid more extensive and costly repairs down the line.

Diagnosing a Faulty Thermostat

Visual Inspection

A visual inspection can sometimes reveal issues with the thermostat or its housing. Look for signs of coolant leaks around the thermostat housing, which may indicate a damaged gasket or housing. Additionally, check for any visible damage to the thermostat itself, such as cracks or corrosion.

Temperature Gauge Monitoring

Monitoring the temperature gauge on your vehicle’s dashboard can provide clues about the thermostat’s condition. If the gauge consistently shows the engine running too hot or too cold, it may indicate a thermostat issue. However, keep in mind that other cooling system problems, such as a faulty water pump or radiator, can also cause temperature irregularities.

Coolant Flow Test

A coolant flow test can help determine if the thermostat is functioning correctly. With the engine cold, remove the radiator cap and start the engine. Observe the coolant flow in the radiator. If the thermostat is working properly, you should see little to no coolant flow until the engine reaches operating temperature. Once the engine warms up, the thermostat should open, allowing coolant to flow through the radiator.

Using an OBD-II Scanner

Modern vehicles are equipped with an On-Board Diagnostics II (OBD-II) system, which can provide valuable information about the engine’s operating temperature. Using an OBD-II scanner, you can monitor the engine’s coolant temperature and compare it to the expected operating range. If the temperature readings are inconsistent or outside the normal range, it may indicate a thermostat issue.

Tools and Materials Needed for Thermostat Replacement

Replacing a thermostat is a relatively straightforward task that can be completed with basic tools and materials. Here is a list of items you will need:

1. New Thermostat: Ensure you purchase the correct thermostat for your vehicle’s make and model.
2. Coolant: You may need to drain and refill the coolant, so have the appropriate type and amount on hand.
3. Gasket or Sealant: Depending on your vehicle, you may need a new gasket or sealant for the thermostat housing.
4. Basic Hand Tools: This includes a socket set, wrenches, screwdrivers, and pliers.
5. Drain Pan: To catch the coolant when draining the system.
6. Funnel: For refilling the coolant.
7. Safety Gear: Gloves and safety glasses to protect yourself from hot coolant and other hazards.

Step-by-Step Guide to Thermostat Replacement

Step 1: Safety Precautions

Before starting any work on your vehicle, ensure that the engine is cool to the touch. Working on a hot engine can result in burns or other injuries. Additionally, disconnect the negative battery terminal to prevent any electrical issues.

Step 2: Locate the Thermostat

The thermostat is typically located near the engine’s upper or lower radiator hose. Refer to your vehicle’s service manual for the exact location. In some vehicles, the thermostat may be housed in a separate housing unit, while in others, it may be integrated into the engine block.

Step 3: Drain the Coolant

Place a drain pan beneath the radiator and open the radiator drain valve to drain the coolant. If your vehicle does not have a drain valve, you may need to remove the lower radiator hose to drain the coolant. Be sure to catch all the coolant in the drain pan for proper disposal.

Step 4: Remove the Thermostat Housing

Using the appropriate tools, remove the bolts or screws securing the thermostat housing. Carefully separate the housing from the engine, taking care not to damage the gasket or surrounding components. Once the housing is removed, you should have access to the thermostat.

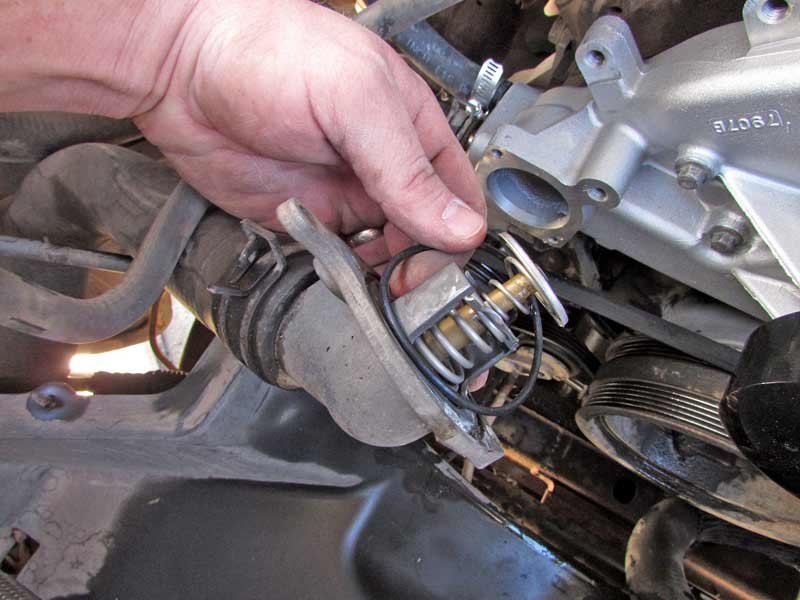

Step 5: Remove the Old Thermostat

Gently remove the old thermostat from its housing. Take note of its orientation, as the new thermostat will need to be installed in the same position. Inspect the housing for any signs of damage or corrosion, and clean it if necessary.

Step 6: Install the New Thermostat

Place the new thermostat into the housing, ensuring it is oriented correctly. If your vehicle uses a gasket, install the new gasket between the housing and the engine. If your vehicle uses sealant, apply a thin, even layer to the housing before reinstalling it.

Step 7: Reassemble the Thermostat Housing

Carefully reattach the thermostat housing to the engine, ensuring that the gasket or sealant is properly seated. Tighten the bolts or screws securely, but avoid over-tightening, as this can damage the housing or gasket.

Step 8: Refill the Coolant

Using a funnel, refill the radiator with the appropriate type and amount of coolant. Be sure to follow your vehicle’s specifications for coolant type and mixture ratio. Once the radiator is full, replace the radiator cap.

Step 9: Reconnect the Battery

Reconnect the negative battery terminal and ensure it is securely fastened.

Step 10: Test the System

Start the engine and allow it to reach operating temperature. Monitor the temperature gauge to ensure the engine is maintaining the correct temperature. Check for any leaks around the thermostat housing and ensure the heater is functioning properly.

Tips for a Successful Thermostat Replacement

1. Use the Correct Thermostat: Ensure you purchase the correct thermostat for your vehicle’s make and model. Using the wrong thermostat can lead to improper engine temperature regulation.
2. Inspect the Cooling System: While replacing the thermostat, take the opportunity to inspect other components of the cooling system, such as the radiator, hoses, and water pump. Address any issues you find to ensure the system operates efficiently.
3. Follow Torque Specifications: When reassembling the thermostat housing, follow the manufacturer’s torque specifications to avoid damaging the housing or gasket.
4. Dispose of Coolant Properly: Coolant is toxic and should be disposed of properly. Take the used coolant to a recycling center or auto parts store that accepts used fluids.
5. Consider a Coolant Flush: If your vehicle’s coolant is old or contaminated, consider performing a coolant flush before refilling the system. This will help remove any debris or contaminants that could affect the cooling system’s performance.

Common Mistakes to Avoid

1. Skipping the Coolant Drain: Failing to drain the coolant before removing the thermostat housing can result in a messy and potentially hazardous situation. Always drain the coolant before starting the replacement process.
2. Installing the Thermostat Backwards: Installing the thermostat in the wrong orientation can prevent it from functioning correctly. Always double-check the thermostat’s orientation before reassembling the housing.
3. Over-Tightening Bolts: Over-tightening the thermostat housing bolts can damage the housing or gasket, leading to leaks. Follow the manufacturer’s torque specifications to avoid this issue.
4. Using the Wrong Coolant: Using the wrong type of coolant can lead to cooling system problems. Always use the coolant specified in your vehicle’s owner’s manual.
5. Ignoring Other Cooling System Issues: While replacing the thermostat, it’s essential to address any other cooling system issues you may encounter. Ignoring these issues can lead to further problems down the line.

When to Seek Professional Help

While thermostat replacement is a relatively simple task for those with basic mechanical skills, there are situations where it may be best to seek professional help:

1. Lack of Tools or Experience: If you do not have the necessary tools or experience to perform the replacement, it may be best to leave the job to a professional mechanic.
2. Complex Cooling System: Some vehicles have complex cooling systems that may require specialized knowledge or tools to access and replace the thermostat.
3. Persistent Cooling Issues: If you have replaced the thermostat and are still experiencing cooling system issues, there may be an underlying problem that requires professional diagnosis and repair.
4. Warranty Concerns: If your vehicle is still under warranty, performing repairs yourself may void the warranty. In such cases, it is best to have the repair performed by a certified technician.

Conclusion

The engine coolant thermostat is a small but crucial component of your vehicle’s cooling system. It plays a vital role in regulating the engine’s temperature, ensuring optimal performance, fuel efficiency, and comfort. Recognizing the signs of a failing thermostat and addressing the issue promptly can prevent costly engine damage and other cooling system problems.

Replacing a thermostat is a relatively straightforward task that can be completed with basic tools and materials. By following the step-by-step guide provided in this article, you can successfully replace your vehicle’s thermostat and restore the cooling system’s functionality. However, if you are unsure or uncomfortable performing the replacement yourself, it is always best to seek professional assistance.

Regular maintenance and timely repairs are essential for keeping your vehicle running smoothly and efficiently. By taking care of your cooling system and addressing issues as they arise, you can ensure your vehicle remains reliable and performs at its best for years to come.
