The stabilizer bar (also known as the sway bar or anti-roll bar) is a crucial component of a vehicle’s suspension system. It helps reduce body roll during cornering, improving stability and handling. The stabilizer bar brackets secure the bar to the vehicle’s frame or subframe, and over time, these brackets can wear out or break due to stress, corrosion, or impact damage.

Replacing a stabilizer bar bracket is a common maintenance task that can restore your vehicle’s handling and prevent further suspension damage. In this guide, we’ll cover:

1. What a Stabilizer Bar Bracket Does

2. Symptoms of a Bad Stabilizer Bar Bracket

3. Tools and Parts Needed for Replacement

4. Step-by-Step Replacement Guide

5. Tips for a Successful Repair

6. When to Seek Professional Help

By the end of this article, you’ll have a thorough understanding of how to replace a stabilizer bar bracket yourself or recognize when it’s time to take your car to a mechanic.

1. What Does a Stabilizer Bar Bracket Do?

The stabilizer bar connects the left and right sides of the suspension, helping to distribute force evenly when the vehicle turns. The brackets hold the stabilizer bar in place and often include bushings that allow slight movement while minimizing metal-on-metal contact.

Components Involved:

• Stabilizer Bar: A metal bar that twists to counteract body roll.

• Brackets: Metal or heavy-duty clamps that secure the bar to the chassis.

• Bushings: Rubber or polyurethane inserts that reduce noise and vibration.

When the brackets fail, the stabilizer bar may move excessively, leading to clunking noises, poor handling, and accelerated wear on other suspension parts.

2. Symptoms of a Bad Stabilizer Bar Bracket

How do you know if your stabilizer bar brackets need replacement? Look for these signs:

A. Clunking or Rattling Noises

• A loose or broken bracket can cause metal-on-metal contact, resulting in clunking sounds when driving over bumps or turning.

B. Excessive Body Roll

• If the stabilizer bar isn’t securely mounted, the vehicle may lean more than usual during turns, reducing stability.

C. Uneven Tire Wear

• A failing stabilizer bar bracket can cause irregular suspension movement, leading to uneven tire tread wear.

D. Visible Damage or Corrosion

• Inspect the brackets for cracks, rust, or missing bolts. Worn-out bushings can also cause excessive play.

E. Loose Stabilizer Bar

• If you can move the stabilizer bar up and down by hand (when the car is lifted), the brackets or bushings may be worn.

3. Tools and Parts Needed for Replacement

Before starting, gather the necessary tools and replacement parts:

Tools Required:

• Jack and jack stands (or a vehicle lift)

• Wheel chocks

• Lug wrench

• Socket set and ratchet

• Wrench set

• Pry bar or large screwdriver

• Torque wrench

• Penetrating oil (like WD-40 or PB Blaster)

• Safety glasses and gloves

Replacement Parts:

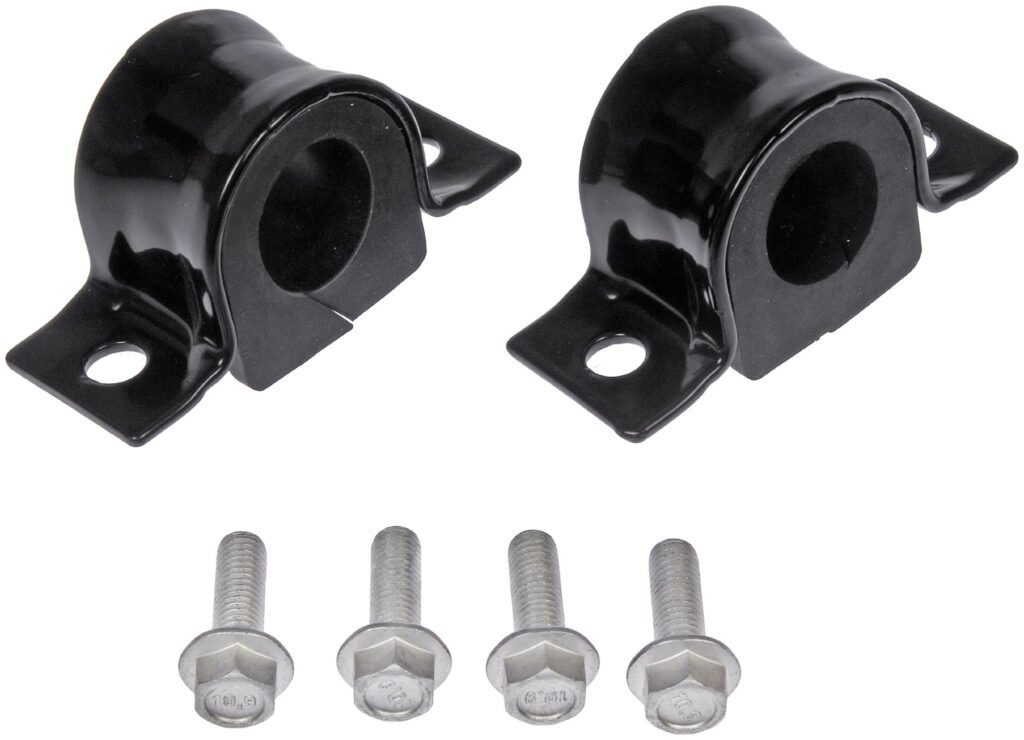

• New stabilizer bar brackets (often sold with bushings)

• New bolts (if old ones are corroded)

• Optional: Polyurethane bushings for longer lifespan

4. Step-by-Step Stabilizer Bar Bracket Replacement

Follow these steps to replace a damaged stabilizer bar bracket:

Step 1: Park on a Flat Surface and Secure the Vehicle

• Park the car on a level surface and engage the parking brake.

• Place wheel chocks behind the rear tires to prevent rolling.

Step 2: Lift the Vehicle

• Use a jack to lift the front (or rear, depending on which bracket is being replaced) of the vehicle.

• Support it with jack stands for safety—never work under a car supported only by a jack.

Step 3: Remove the Wheels (If Necessary)

• Some vehicles allow access to the brackets without wheel removal, but in most cases, removing the wheels provides better access.

• Loosen the lug nuts, lift the car, then remove the wheels completely.

Step 4: Locate the Stabilizer Bar and Brackets

• The stabilizer bar is a thick metal bar running horizontally between the suspension arms.

• The brackets are usually bolted to the subframe or chassis near the control arms.

Step 5: Spray Penetrating Oil on Bolts

• If the bolts are rusted, apply penetrating oil and let it sit for 10-15 minutes to ease removal.

Step 6: Remove the Old Brackets

• Use a socket or wrench to unbolt the bracket.

• Some brackets may require prying off if they’re stuck due to corrosion.

• Inspect the bushings—if they’re cracked or worn, replace them.

Step 7: Install the New Brackets

• Position the new bracket with fresh bushings (if included).

• Insert and hand-tighten the bolts first to ensure proper alignment.

Step 8: Torque the Bolts to Spec

• Refer to the vehicle’s service manual for proper torque settings (typically 30-50 ft-lbs).

• Overtightening can damage the bushings, while undertightening may cause looseness.

Step 9: Reinstall Wheels and Lower the Vehicle

• Put the wheels back on and tighten the lug nuts in a star pattern.

• Lower the car and torque the lug nuts to the manufacturer’s specifications.

Step 10: Test Drive

• Take the car for a short drive to check for noises or handling issues.

• Listen for clunks and pay attention to cornering stability.

5. Tips for a Successful Replacement

• Use Quality Parts: OEM or high-quality aftermarket brackets last longer.

• Replace Bushings Too: Even if the brackets look fine, worn bushings can cause noise.

• Check Other Suspension Components: While under the car, inspect control arms, tie rods, and struts for wear.

• Apply Grease (If Needed): Some polyurethane bushings require grease to prevent squeaking.

6. When to Seek Professional Help

While this is a DIY-friendly job, consider professional help if:

• The bolts are severely rusted and won’t budge.

• The stabilizer bar itself is damaged.

• You’re unsure about suspension work (improper installation can affect safety).

Conclusion

Replacing a stabilizer bar bracket is a straightforward repair that can significantly improve your vehicle’s handling and safety. By recognizing the symptoms early and following proper installation steps, you can avoid costly suspension damage down the road.

Whether you’re a DIY enthusiast or prefer a mechanic’s expertise, maintaining your stabilizer bar system ensures a smoother, more controlled ride. If in doubt, consult a professional to ensure the job is done right.
