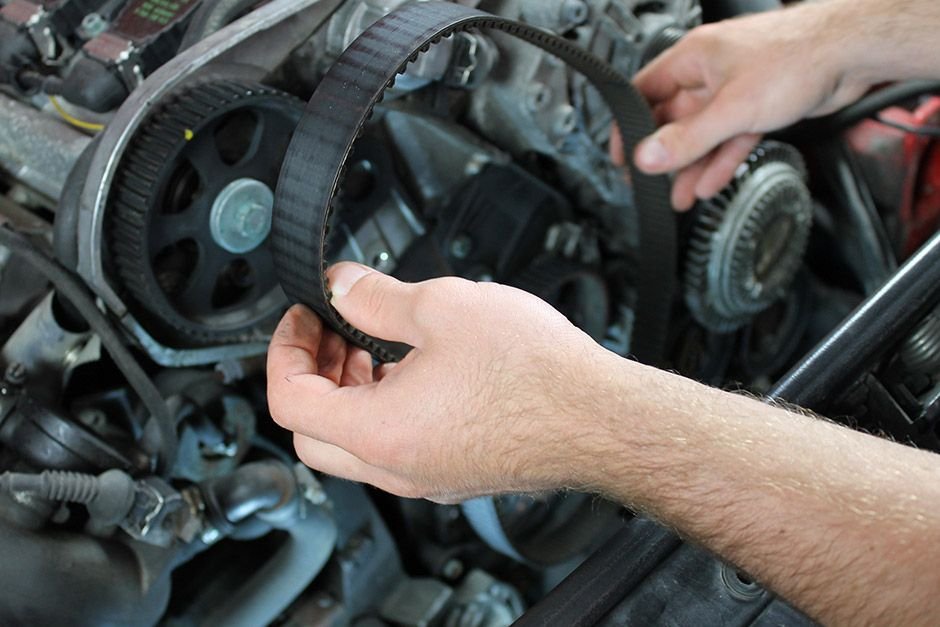

Timing Belt Replacement Service: A Comprehensive Guide

Introduction

The timing belt is a crucial component in the internal combustion engine of most modern vehicles. It plays a vital role in synchronizing the rotation of the crankshaft and the camshaft, ensuring that the engine’s valves open and close at the correct times during each cylinder’s intake and exhaust strokes. Given its importance, a failing timing belt can lead to severe engine damage, making timely replacement essential. This article delves into the intricacies of timing belt replacement service, covering its importance, signs of wear, the replacement process, and maintenance tips.

Importance of the Timing Belt

Synchronization of Engine Components

The timing belt is responsible for maintaining the precise synchronization between the crankshaft and the camshaft. The crankshaft converts the linear motion of the pistons into rotational motion, while the camshaft controls the opening and closing of the engine’s valves. If the timing belt fails, this synchronization is lost, leading to improper valve timing, which can cause the pistons to collide with the valves, resulting in catastrophic engine damage.

Engine Performance and Efficiency

A properly functioning timing belt ensures optimal engine performance and fuel efficiency. When the timing belt is in good condition, the engine runs smoothly, with all components working in harmony. However, a worn or damaged timing belt can cause misfires, reduced power, and increased fuel consumption, negatively impacting the vehicle’s overall performance.

Prevention of Costly Repairs

Replacing a timing belt before it fails can prevent expensive repairs. If the timing belt breaks while the engine is running, it can cause significant damage to the engine’s internal components, such as the pistons, valves, and cylinder head. In some cases, the damage may be so severe that the engine needs to be replaced entirely. Regular timing belt replacement is a cost-effective way to avoid such scenarios.

Signs of a Worn or Failing Timing Belt

Engine Misfires

One of the most common signs of a failing timing belt is engine misfires. When the timing belt is worn or stretched, it can cause the camshaft and crankshaft to fall out of sync, leading to improper valve timing. This can result in misfires, where the air-fuel mixture in the cylinders does not ignite properly, causing the engine to run roughly or stall.

Ticking Noise from the Engine

A ticking noise coming from the engine can indicate a problem with the timing belt. As the timing belt wears, it can develop cracks or frayed edges, which can cause it to make noise as it moves over the pulleys. If you hear a ticking noise, it’s essential to have the timing belt inspected as soon as possible to prevent further damage.

Engine Won’t Start

If the timing belt breaks, the engine will not start. This is because the timing belt is responsible for synchronizing the crankshaft and camshaft, and without it, the engine cannot function. If your vehicle fails to start and you suspect a timing belt issue, it’s crucial to have it towed to a repair shop rather than attempting to start it, as this can cause further damage.

Visible Wear and Tear

During routine maintenance, a mechanic may inspect the timing belt for signs of wear and tear. Common indicators of a worn timing belt include cracks, fraying, glazing, or missing teeth. If any of these signs are present, the timing belt should be replaced immediately to prevent failure.

Oil Leaks

Oil leaks near the timing belt cover can also indicate a problem. If oil seeps onto the timing belt, it can cause the belt to deteriorate more quickly, leading to premature failure. Additionally, oil leaks can be a sign of a failing timing belt tensioner or seals, which should be addressed during the timing belt replacement process.

Timing Belt Replacement Process

Preparation

Before beginning the timing belt replacement process, it’s essential to gather the necessary tools and materials. These may include a new timing belt, timing belt tensioner, idler pulleys, seals, gaskets, and any other components recommended by the vehicle manufacturer. Additionally, you’ll need basic hand tools, such as wrenches, sockets, and screwdrivers, as well as a torque wrench to ensure proper tightening of bolts.

Accessing the Timing Belt

The first step in replacing the timing belt is to gain access to it. This typically involves removing various components, such as the engine cover, serpentine belt, and timing belt cover. Depending on the vehicle, you may also need to remove the radiator, fan, or other components to create enough space to work.

Aligning the Timing Marks

Once the timing belt is exposed, the next step is to align the timing marks on the crankshaft and camshaft. This ensures that the engine is in the correct position for timing belt replacement. The timing marks are usually located on the crankshaft pulley and camshaft sprockets and should be aligned according to the manufacturer’s specifications.

Removing the Old Timing Belt

With the timing marks aligned, the old timing belt can be removed. This involves loosening the timing belt tensioner to release tension on the belt, allowing it to be slipped off the pulleys. It’s essential to take note of the belt’s routing before removing it, as the new belt will need to be installed in the same manner.

Installing the New Timing Belt

The new timing belt should be installed following the same routing as the old belt. It’s crucial to ensure that the timing marks remain aligned during this process. Once the new belt is in place, the timing belt tensioner should be adjusted to apply the correct amount of tension to the belt. This is a critical step, as improper tension can lead to premature belt wear or failure.

Reassembling the Engine

After the new timing belt is installed and properly tensioned, the engine can be reassembled. This involves reinstalling the timing belt cover, serpentine belt, engine cover, and any other components that were removed to access the timing belt. It’s essential to follow the manufacturer’s torque specifications when tightening bolts to ensure proper assembly.

Testing the Engine

Once the engine is reassembled, it’s important to test it to ensure that the timing belt replacement was successful. Start the engine and listen for any unusual noises, such as ticking or knocking, which could indicate a problem with the timing belt installation. Additionally, check for proper engine performance, including smooth idling and acceleration.

Maintenance Tips for Timing Belt Longevity

Follow the Manufacturer’s Replacement Interval

One of the most important steps in maintaining the timing belt is to follow the manufacturer’s recommended replacement interval. This interval can vary depending on the vehicle make and model, but it is typically between 60,000 and 100,000 miles. Adhering to this schedule helps ensure that the timing belt is replaced before it has a chance to fail.

Regularly Inspect the Timing Belt

In addition to following the replacement interval, it’s a good idea to have the timing belt inspected regularly during routine maintenance. A mechanic can check for signs of wear and tear, such as cracks, fraying, or glazing, and recommend replacement if necessary. Regular inspections can help catch potential issues early, preventing costly repairs down the line.

Address Oil Leaks Promptly

Oil leaks can accelerate the deterioration of the timing belt, so it’s important to address them promptly. If you notice oil leaks near the timing belt cover, have them repaired as soon as possible to prevent oil from contaminating the belt. Additionally, replacing the timing belt tensioner and seals during the timing belt replacement process can help prevent future leaks.

Avoid Overheating the Engine

Overheating can cause the timing belt to deteriorate more quickly, so it’s important to take steps to prevent the engine from overheating. This includes maintaining the cooling system, checking the coolant level regularly, and addressing any issues with the radiator, water pump, or thermostat promptly. Keeping the engine at the proper operating temperature can help extend the life of the timing belt.

Use High-Quality Replacement Parts

When replacing the timing belt, it’s important to use high-quality replacement parts. This includes the timing belt itself, as well as the tensioner, idler pulleys, and seals. Using high-quality parts can help ensure that the timing belt replacement is successful and that the new belt lasts as long as possible.

Consider Replacing Related Components

In addition to the timing belt, it’s often a good idea to replace related components, such as the water pump, tensioner, and idler pulleys, during the timing belt replacement process. These components are subject to wear and tear and can fail over time, so replacing them at the same time as the timing belt can help prevent future issues and save on labor costs.

Conclusion

The timing belt is a critical component of the internal combustion engine, responsible for synchronizing the crankshaft and camshaft to ensure proper engine operation. Given its importance, timely replacement of the timing belt is essential to prevent severe engine damage and costly repairs. By understanding the signs of a worn or failing timing belt, following the recommended replacement interval, and using high-quality replacement parts, you can help ensure the longevity and reliability of your vehicle’s engine. Regular maintenance and prompt attention to any issues can go a long way in keeping your timing belt and engine in optimal condition.
